Motor Grader-GS-10.01

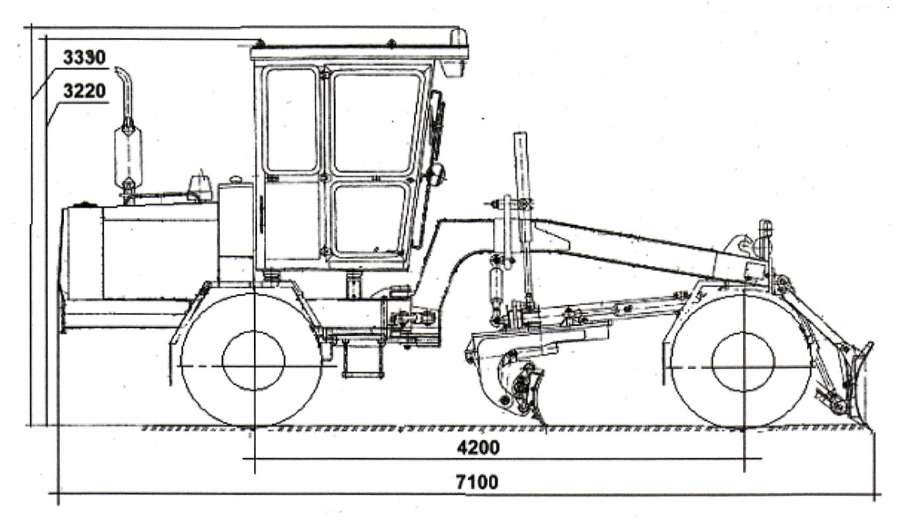

TECHNICAL SPECIFICATIONS
|
Operating weight, kg |
7 500 |
|
Length with mountingequipment |
7 140 |
|
Width, mm |
2 440 |
|
Height including cab, mm |
3 220 |
|
Height including flashlight, mm |
3 330 |
|
Base, mm |
4 200 |
|
Minimal radius of turn, m |
4,75 |
|
Speed, km/h |
1,97...35 |
|
MOLDBOARD: |
|
Length of blade, mm |
3 040 |
|
Height of blade, mm |
470 |
|
Lift above ground, mm |
350 |
|
Max. shoulder reach, mm |
600 |
|
Slope cutting angle, degree |
45 |
|
MOTOR GRADER UNIT STRUCTURE |
|
Engine: |
D-243 |
|
Eng.power, kwt |
58,7 |
|
Power density, kwt/t |
7,83 |
|
Torque |
290,4 |
|
Gear-box |
mechanical |
|
Number of gears:forward/reverse |
18/4 |
|
Front axle |
driven |
|
Rear axle |
drive |
|
Dimension of tires |
1200x500-508 |
|
Wheel formula |
1x1x2 |
- It is fitted with a diesel engine and a transmission of the tractor MT3-80, which are recommended as reliable units in our country and abroad.
- The use of hydraulic cylinders in the grader blade rotary device increased the reliability of the joint.
- 18 gears of the gear-box at forward movement provide the most effective using of the engine capacity.
- Articulated frame provides grader turning radius less than 4, 75 m.
- Application of the anti-sliding chains of the original design makes possible using of the motor grader in winter conditions.
- The cab can be fitted with air conditioner, "Pilot" operator seat, FOPS-ROPS cab.
- Hinged replaceable equipment: dozer moldboard, snow removing equipment, front scarifier.
- Additional equipment: anti-sliding chains CPD 1, blade set for removing snow, produced by "Olofsfors AB" (wear resistance)
|
|
