Motor Grader-GS-25.09
TECHNICAL SPECIFICATIONS
|
Operating weight without mounting equipment, kg |
17 300 |
|
Operating weight including moldboard, kg |
18 200 |
|

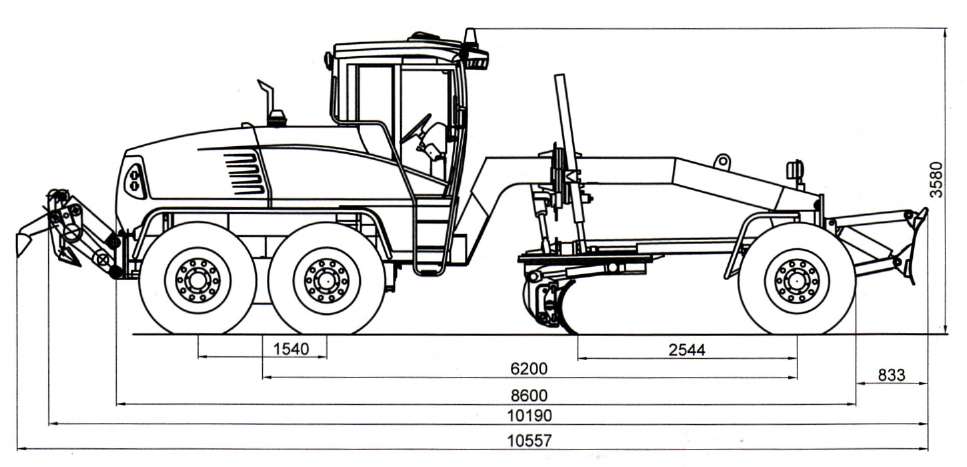

Length without mounting equipment, mm |
8 600 |
|

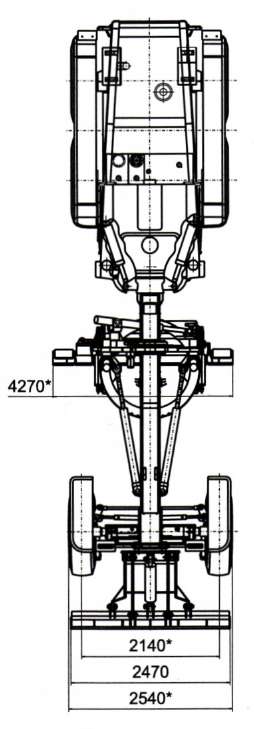

Width, mm |
2 540 |
|
Height including beacon, mm |
3 580 |
|
Wheel base, mm |
6 200 |
|
Minimal radius of turn, m |
7,8 |
|
Speed, km/h |
4,5. .40,8 |
|
GRADER BLADE: |
|
Length of blade, mm |
4 270 |
|
Height of blade, mm |
700 |
|
Lift above ground, mm |
730 |
|
Blade offset, mm |
700 |
|
Turning plane angle, degree |
±65 |
|
Slope flattening angle, degree |
0-90 |
|
Dimension of tyres |
14.00-24 G2 |
|
Wheel arrangement |
1x3x3 |
|
Pressure on blade, kg |
8 864 |
|
Tractive force on blade, kg |
14 450 |
|
MOTOR GRADER UNIT STRUCTURE |
|
Engine: |
ЯM3-236 БE 2-20 |
|
Useful power, kWt (h.p) |
176,5 (240) |
|
Gear box |
|
"ZF", Germany |
hydromechanical |
|
Number of gears: forward/reverse |
6/3 |
|
Driveline |
2 cardans |
|
Front axle |
Driving |
|
Rear axle |
driving |
- Hydraulics with fixed-capacity and unloading. Dual circuit brake system with hydraulic amplifier of braking forces, with pressure equalization and reserve driving gear.
- Modern cab design and interior. The cab provides the highest level of visibility, it has streamlined plastic roof and folding bonnet with gas dampers, windscreen blowing, combined extract and input ventilation, sliding doors, «Pilot» operator seat and adjustable steering column. Working elements' control is combined with distribution of working liquid flow by means of hand- and electrically operated hydraulic distributors, that are located in immediate proximity to executive mechanisms. This provides better coverage of the working zone.
- Articulated frame and turning grader blade provide wide road coverage effectively using the dozer blade and other replaceable equipment. Full range of attached tools for installation on the front frame and rear frame.
- By customers special order the cab can be equipped with air conditioner and system of automatic control of grader's blade, and installation of cab with protection system 'FOPS-ROPS' in framing.
- Additional equipment: turning grader blade for removing snow, blade set for removing snow, front scarifier, rear ripper.
|
|
|
|
