Motor Grader-GS-18.07
TECHNICAL SPECIFICATIONS
|
Operating weight without mounting equipment, kg |
16 000 |
|
Operating weight including moldboard, kg |
16 827 |
|

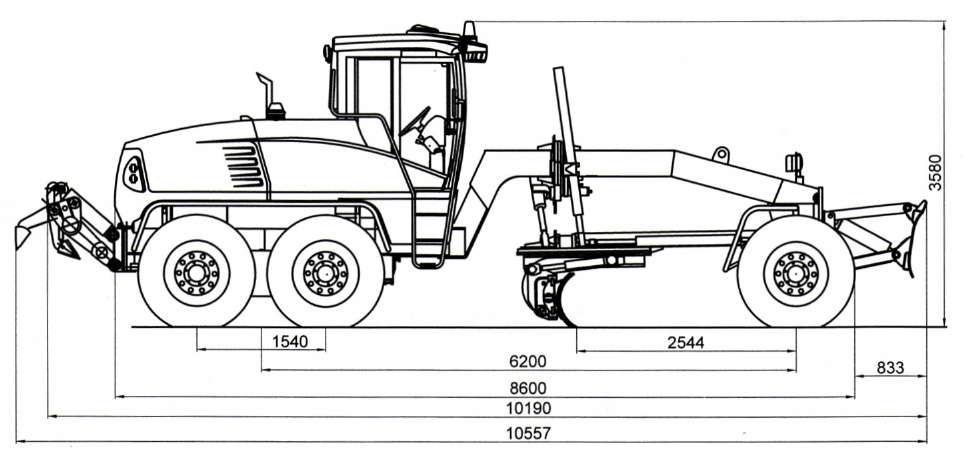

Length without mounting equipment, mm |
8 600 |
|

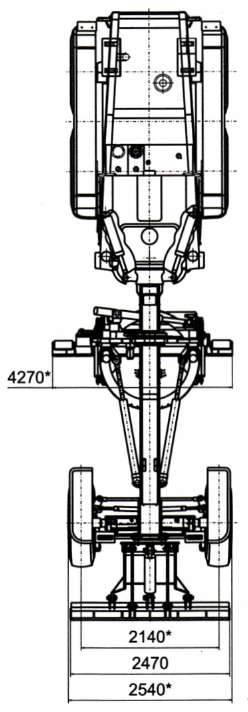

Width, mm |
|
2 540 |
|
Height including beacon, mm |
|
3 580 |
|
Wheel base, mm |
|
6 200 |
|
Minimal radius of turn, m |
|
7,8 |
|
Speed, km/h |
|
4,9...41,2 |
|
GRADER BLADE: |
|
Length of blade, mm |
|
4 270 |
|
Height of blade, mm |
|
700 |
|
Lift above ground, mm |
|
730 |
|
Blade offset, mm |
|
700 |
|
Turning plane angle, degree |
|
±65 |
|
Slope flattening angle, degree |
|
0-90 |
|
Dimension of tyres |
|
14.00-24, G2 |
|
Wheel arrangement |
|
1x2x3 |
|
Pressure on blade, kg |
|
8 200 |
|
Tractive force on blade, kg |
|
10 080 |
|
MOTOR GRADER UNIT STRUCTURE |
|
Engine: CUMMINS 6CT8.3 |
DEUTZAG BF06M1013EC |
|
Useful power, kWt (h. p) |
147 (200) |
147 (200) |
|
Gear box |
|
«ZF», Germany |
|
hydromechanical |
|
Number of gears: forward/ reverse |
|
6/3 |
|
Driveline |
|
1 cardan |
|
Front axle |
|
nondriving |
|
Rear axle |
|
driving |
- Hydraulics with fixed-capacity and unloading. Dual circuit brake system with hydraulic amplifier of braking forces, with pressure equalization and reserve driving gear.
- Modern cab design and interior. The cab provides the highest level of visibility, it has streamlined plastic roof, windscreen blowing, combined extract and input ventilation, sliding doors, «Pilot» operator seat and adjustable steering column. All control elements are in 90° sector in front of the operator and on the right of him. The cab is equipped with «FOPS-ROPS» protection system.
- Articulated frame and turning grader blade provide wide road coverage effectively using the dozer blade and other replaceable equipment. Full range of attached tools for installation on the front frame and rear frame. The grader's bonnet is folding with gas dampers.
- By customers special order the cab can be equipped with air conditioner and system of automatic control of grader's blade.
|
|
